Design Rod Fence Panel – ST25/1
Secure system, easy installation, outstanding quality

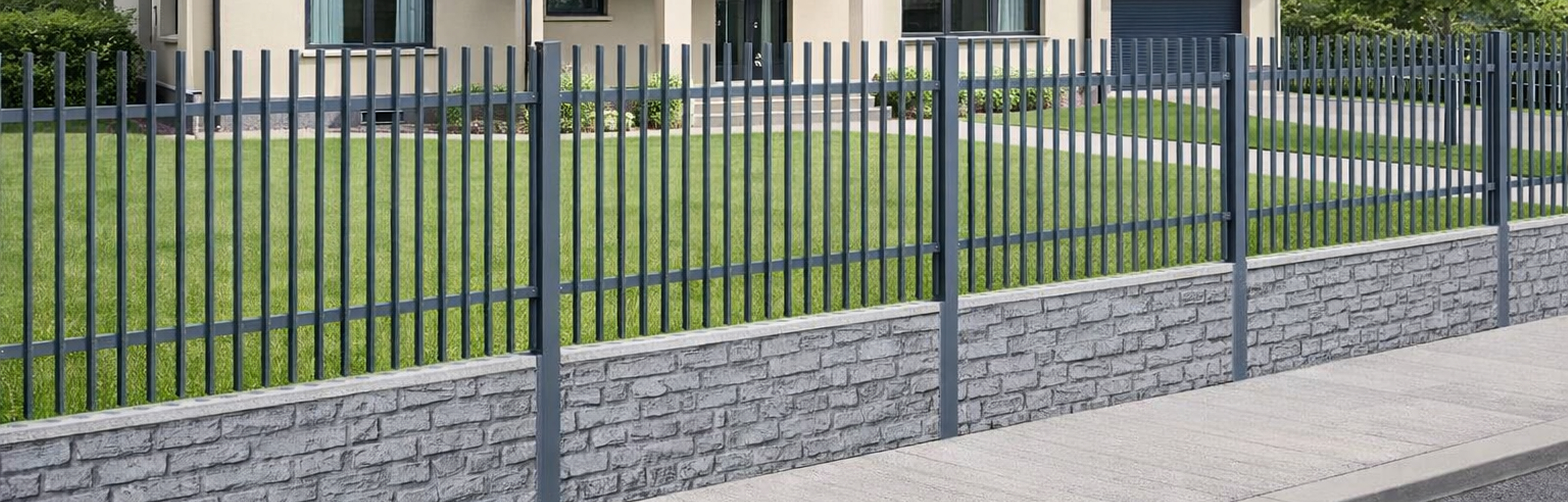

The ST25/1 design rod fence features vertical bars extending beyond the horizontal rails at both the top and bottom. These protruding rods enhance both security and visual appeal, while the use of high-quality materials ensures long-term durability and protective performance.
Installed as a front-facing solution, it is an ideal addition to residential properties and family homes. The fence panels are quick and easy to install, with adjustable height positioning. The panels can also be mounted onto existing concrete pillars.
Product Features
- Surface treatment: galvanized steel sections with UV-stable powder coating
- Frame: robust 40×40 mm and 30×40 mm hollow sections
- Infill elements: 20×20 mm hollow section rods
- Heavy-duty steel posts:
- 60×60 mm posts for in-ground installation (set in concrete), with adjustable fixing tabs
- 60×60 mm base-plated posts for anchoring to existing surfaces
- Can also be installed without steel posts, directly onto existing pillars
Accessories, Installation and System Design
The ST25/1 design fence is compatible with prefabricated concrete base panels. The panel width matches standard 200 cm concrete elements, allowing you to avoid costly strip foundations and masonry work.
Installation is simple:
- Posts can be set into point foundations or fixed onto strip foundations with base plates
- Alternatively, posts can be anchored onto existing concrete or paved surfaces
The system is modular and well-engineered, enabling fast planning and flexible installation.
- Standard panel width: 200 cm
- Common heights: 100, 120, 150, 170 cm (custom height up to 200 cm available)
Steel posts are available in:
- In-ground (concrete-set) versions
- Base-plated (anchorable) versions
Fence panels can also be purchased without posts, with all necessary caps and fixings available for complete installation.
A key advantage of the system is that, in many cases, prefabricated concrete base elements can be used, significantly reducing construction costs by eliminating the need for extensive groundwork, heavy machinery, and masonry.
Available Versions and Dimensions
- Panel width: 200 cm
- Panel heights: 120, 150, 170 cm
- Post lengths are adapted to the selected fence height
Alternative Option: Deluxe Steel Panel Fence
Within the Design product family, the Deluxe panel system offers a more solid, privacy-focused solution.
Unlike thin bent sheet solutions, the Deluxe system is made from fully galvanized hollow steel sections, ensuring superior strength and durability. All elements feature a three-layer, UV-stable surface protection, providing long-term resistance to weather conditions.
- Panel width: 200 cm
- Heights: 120, 140, 160, 180, 200 cm
- Infill elements: 80×20 mm high-strength hollow sections
Posts are available in both:
- In-ground (concrete-set) versions
- Base-plated versions
Panels can also be ordered without posts.
Important: prefabricated concrete base panels are not compatible with this system.
Key Advantages of the Deluxe System
- Extremely fast installation
- High durability and structural stability
- Clean, modern appearance
- Excellent privacy protection (only 4 cm spacing between elements)
Technology and Material Quality
The hollow section design provides significantly higher strength and stability compared to standard bent sheet fences.
Production process:
- Hot-rolled steel coils are produced from steel billets
- Cold rolling ensures precise thickness and surface quality
- Pickling removes oxidation layers
- Hot-dip galvanizing (Sendzimir process) provides corrosion protection
- Additional treatments (passivation, oiling) enhance durability
- Roll forming creates hollow sections, significantly improving structural rigidity
- Final welding ensures long-term strength and reliability
